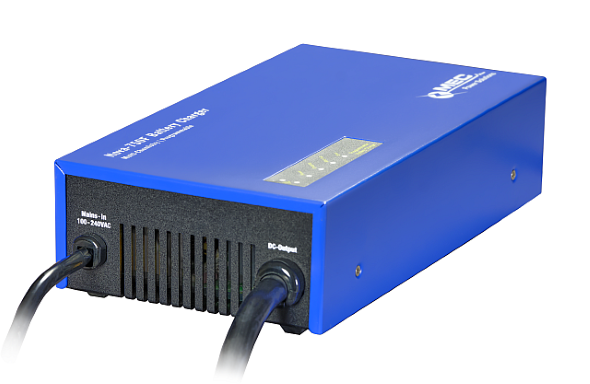

NOVA-750F Battery Charger
The Power Pack – Compact, Quiet:
Load-dependent fan ensures quiet operation. Well fit for on-board charging of any e-mobility (compact size, quiet fan).
The Metal Enclosure – Attractive, Solid:
Made of extruded parts and painted sheet of steel elements. With wall-mount brackets for functional convenience.
“Auto Wake-Up” of the Battery:
The NOVA-750F activates the battery BMS with pre-defined voltage pulses.
Automatic Charge-Restart:
Auto switch-off at “Battery-Full”. Auto charge-restart after a pre-defined number of days or a set voltage level across the battery terminals.
Charge Profiles – Customizable:
Charge parameters can be modified via the IR-Interface.
Technical Specifications
Lithium-based Batteries
| Li-ion Batteries, 3.6V/Cell (nom.) |
| 4S 7S 10S 14S |
| - 25A - 13A |
| LiFePO4 Batteries, 3.2V/Cell (nom.) |
| 4S 8S 12S 14S 16S |
| - 25A - - 13A |
Lead-based Batteries
| Nom. Voltage / Charge Current |
| 12V 24V 36V 48V |
| - 25A - 13A |
Product Specifications
| Output Power： | max. 750W |
| Mains Voltage / Mains Pins： | 100 - 240VAC / 3-pin IEC-Plug, Mains-Switch |
| Operating Temperature： | -20°C to +40°C |
| Dimensions / Weight： | 235x158x67mm / 2.5kg |
| Charge Cord： | 1.2m, alligator clips / ring terminals |
| IP-Protection Class： | IP20 |
| Safety Functions： | Short-, Overload-, Reverse Polarity Protection |
| Additional Features (optional)： | CAN-Bus, Ignition-Lock, Charge Enable |
| Certificates of Compliance： | CE |
Applications
Motorbikes, Caravans, Hydraulic Lifts, Farming Tools, Boats, Yachts
