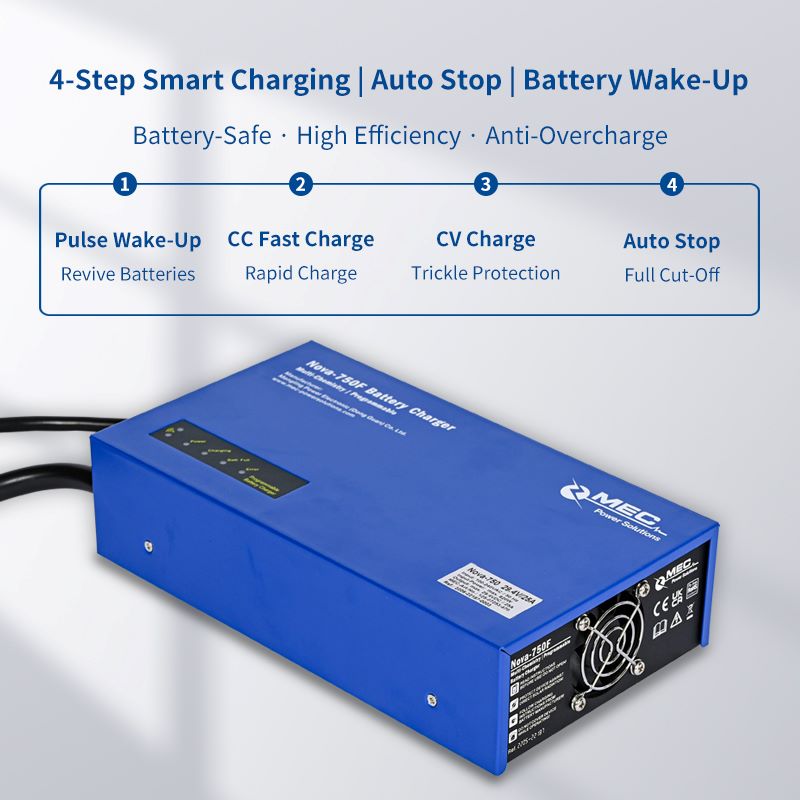

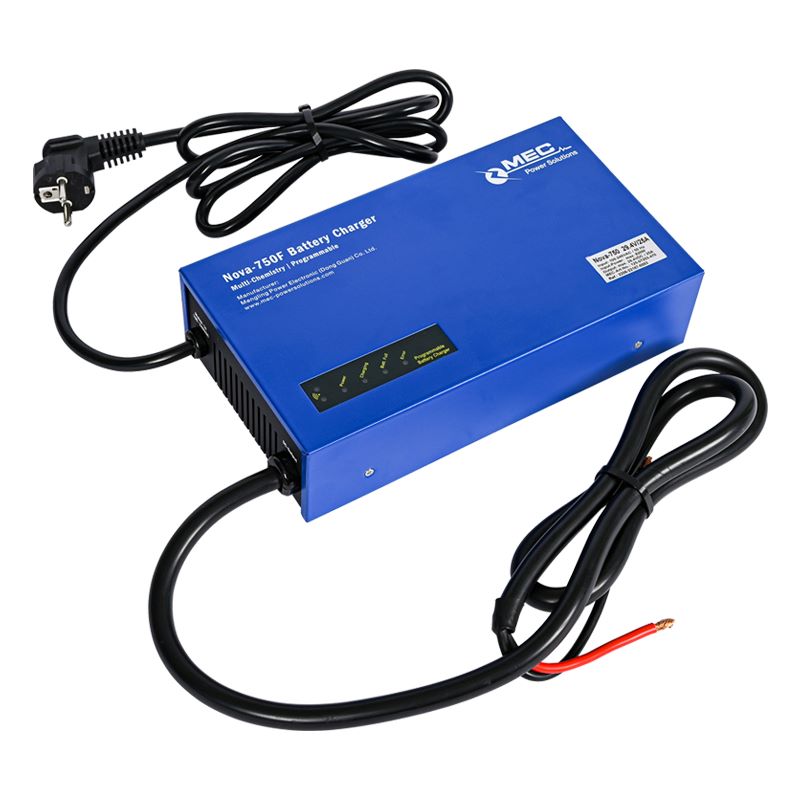

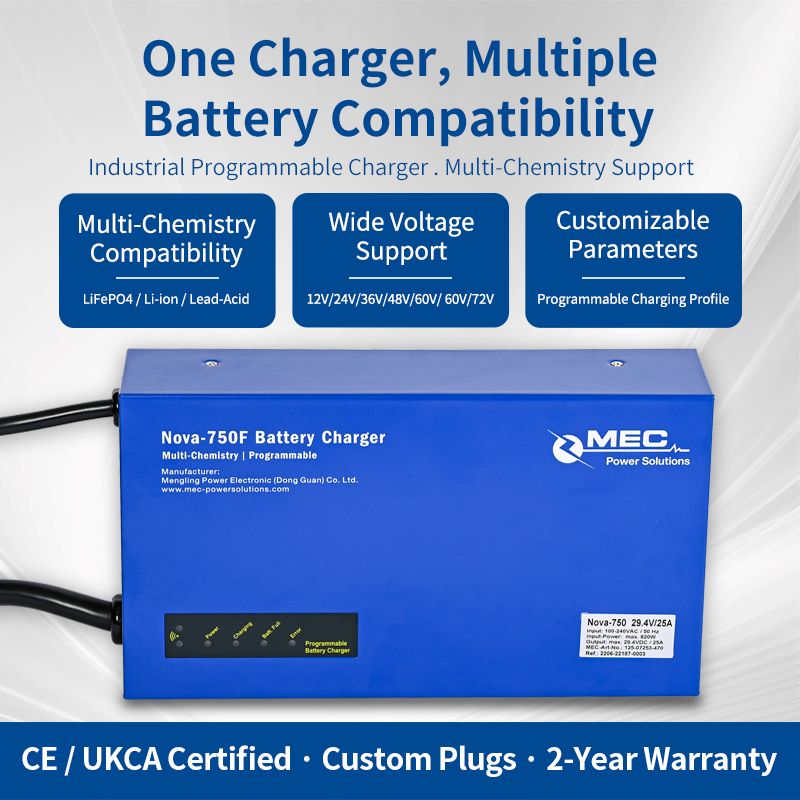

NOVA-750F Battery Charger
The Power Pack – Compact, Quiet:
Load-dependent fan ensures quiet operation. Well fit for on-board charging of any e-mobility (compact size, quiet fan).
The Metal Enclosure – Attractive, Solid:
Made of extruded parts and painted sheet of steel elements. With wall-mount brackets for functional convenience.
“Auto Wake-Up” of the Battery:
The NOVA-750F activates the battery BMS with pre-defined voltage pulses.
Automatic Charge-Restart:
Auto switch-off at “Battery-Full”. Auto charge-restart after a pre-defined number of days or a set voltage level across the battery terminals.
Charge Profiles – Customizable:
Charge parameters can be modified via the IR-Interface.
Technical Specifications
Lithium-based Batteries
Li-ion Batteries, 3.6V/Cell (nom.) |
4S 7S 10S 14S |
- 25A - 13A |
LiFePO4 Batteries, 3.2V/Cell (nom.) |
4S 8S 12S 14S 16S |
- 25A - - 13A |
Lead-based Batteries
Nom. Voltage / Charge Current |
12V 24V 36V 48V |
- 25A - 13A |
Product Specifications
Output Power: | max. 750W |
Mains Voltage / Mains Pins: | 100 - 240VAC / 3-pin IEC-Plug, Mains-Switch |
Operating Temperature: | -20°C to +40°C |
Dimensions / Weight: | 235x158x67mm / 2.5kg |
Charge Cord: | 1.2m, alligator clips / ring terminals |
IP-Protection Class: | IP20 |
Safety Functions: | Short-, Overload-, Reverse Polarity Protection |
Additional Features (optional): | CAN-Bus, Ignition-Lock, Charge Enable |
Certificates of Compliance: | CE |
Applications
Motorbikes, Caravans, Hydraulic Lifts, Farming Tools, Boats, Yachts
