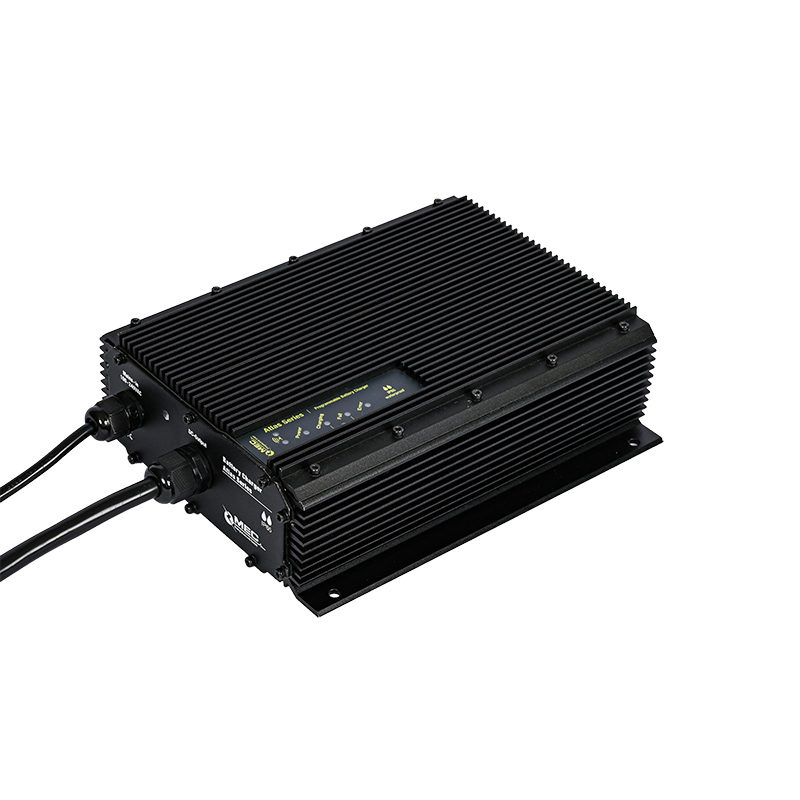

ATLAS-500 Battery Charger
IP65 – Built for the Rough Environment:
AL-extruded enclosure. Vibration proof, high impact resistance. Pressure vent prevents the build-up of condensation.
“Auto Wake-Up” of the Battery:
The ATLAS-500 activates the battery BMS with pre-defined voltage pulses.
Automatic Charge-Restart:
Auto switch-off at “Battery-Full”. Auto charge-restart after a pre-defined number of days or a set voltage level across the battery terminals.
Charge Profiles – Customizable:
New charge parameters can be uploaded via the IR-Interface
Technical Specifications
Lithium-based Batteries
| Li-ion Batteries, 3.6V/Cell (nom.) |
| 4S 7S 10S 14S |
| - 17A 11A 9A |
| LiFePO4 Batteries, 3.2V/Cell (nom.) |
| 4S 8S 12S 14S 16S |
| - 17A 11A 10A 9A |
Lead-based Batteries
| Nom. Voltage / Charge Current |
| 12V 24V 36V 48V |
| - 17A 11A 9A |
Product Specifications
| Output Power： | max. 500W |
| Mains Voltage / Mains Pins： | 100 - 240VAC / country specific AC-plug |
| Operating Temperature： | -30°C to +40°C |
| Dimensions / Weight： | 237x196x70.5mm / 4.0kg |
| Charge Cord： | 1.2m, stripped wire ends / ring terminals |
| IP-Protection Class： | IP65 |
| Safety Functions： | Short-, Overload-, Reverse Polarity Protection |
| Additional Features (optional)： | CAN-Bus, Ignition-Lock, Charge Enable |
| Certificates of Compliance： | CE |
Applications
Caravans, Floor Scrubbing Machines, Hydraulic Lifts, Farming Tools, Boats, Yachts
Documents
High-Power Charging Solution: 500W Industrial Battery Charger
The 500W Industrial Battery Charger is a high-performance charging solution designed to meet the demands of large-scale battery systems. With 500 watts of power, it quickly and safely charges various industrial batteries, including lead-acid, lithium-ion, and AGM types. Featuring advanced smart charging technology, the charger adjusts parameters based on battery type and condition, optimizing efficiency and extending battery life. Its rugged design ensures reliable operation in harsh industrial environments, making it an ideal choice for industrial equipment and large-scale energy storage systems.
Advantages of Using 500W Industrial Battery Charger :
High Charging Power: With 500 watts of power, this charger delivers rapid and efficient charging for large-scale and high-capacity batteries, minimizing downtime and maximizing productivity.
Versatile Compatibility: Supports a wide range of battery types, including lead-acid, lithium-ion, and AGM, making it suitable for various industrial applications.
Smart Charging Technology: Features advanced technology that adjusts charging parameters based on battery type and condition, optimizing performance and extending battery life.
Enhanced Durability: Built to withstand harsh industrial environments, ensuring reliable operation even in demanding conditions.
Safety Features: Equipped with overcharge, overheat, and short-circuit protection, providing safe and reliable charging for your battery systems.
